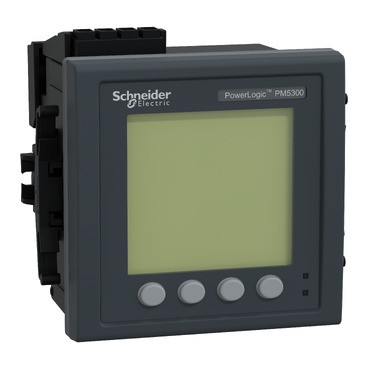

Power Meter PowerLogic PM5320, ethernet, up to 31st Harmonic, 256KB 2DI/2DO 35 alarms
Specifications METSEPM5320 |
| Range of product | PowerLogic PM5000 |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | PM5320 |
| Product or component type | Power meter |
| Power quality analysis | Up to the 31st harmonic |
| Device application | Multi-tariff
Power monitoring |
| Type of measurement | Current
Voltage
Frequency
Power factor
Energy
Active and reactive power |
| Supply voltage | 90...450 V AC 45...65 Hz
100...300 V DC |
| [In] rated current | 5 A
1 A |
| Type of network | 3P + N
1P + N
3P |
| Display type | Monochrome graphic LCD |
| Display resolution | 128 x 128 pixels |
| Measurement current | 50…8500 mA |
| Analogue input type | Voltage (impedance 5 MOhm)
Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 35…760 V AC 45...65 Hz between phases
20…440 V AC 45...65 Hz between phase and neutral |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 |
| Number of inputs | 2 digital |
| Number of outputs | 2 digital |
| Information displayed | Tariff (4) |
| Communication port protocol | Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V
BACnet IP |
| Communication port support | ETHERNET |
| Data recording | Maintenance logs
Alarm logs
Min/max of instantaneous values
Event logs
Time stamping
Data log |
| Memory capacity | 256 kB |
| Connections - terminals | Voltage circuit: screw terminal block4
Control circuit: screw terminal block2
Current transformer: screw terminal block6
Input/output circuit: screw terminal block6
Relay output: screw terminal block4
Ethernet network: RJ45 connector |
| Material | Polycarbonate |
Dimensions (mm)
(H x W x D) | 96x96x72mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 430 g |
