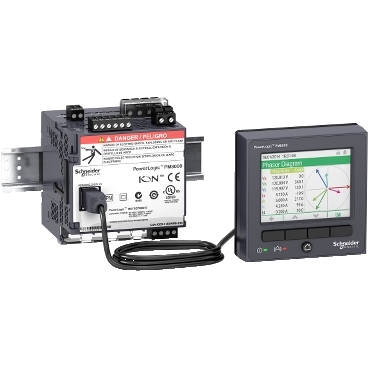

PowerLogic PM8000 - PM8244 DIN rail mount Meter + Remote display - int. Metering.
| Specifications |
| Range of product | PowerLogic PM8000 |
| Country of Origin (Estimated) | Canada |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | PM8244 |
| Product or component type | Power meter |
| Power quality analysis | Conforming to EN 50160: 2010 compliance report
conforming to IEEE 519: 2014 compliance report
conforming to IEC 61000-4-30: class S power quality measurement
up to the 63rd harmonic
harmonic distortion
waveform capture
voltage sag and swell detection
programmablity (logic and math functions)
conforming to IEC 62586 power quality monitoring
disturbance direction detection
rapid voltage change |
| Device application | WAGES metering
Power monitoring |
| Type of measurement | Current
Voltage
Frequency
Active and reactive power total
Apparent power total
Power factor total
Active and reactive power per phase, rms
Apparent power per phase, rms
Power factor per phase, rms |
| Supply voltage | 90...415 V AC 45...65 Hz +/- 10 %
110...415 V DC +/- 10 % |
| [In] rated current | 1 A
5 A
10 A |
| Type of network | 3P + N
1P + N
3P |
| Display type | Remote LCD display |
| Display resolution | 320 x 240 pixels QVGA |
| Measurement current | 50…10000 mA |
| Analogue input type | Voltage (impedance 5 MOhm)
Current (impedance 0.3 mOhm) |
| Measurement voltage | 57…400 V AC 42...69 Hz between phase and neutral
100…690 V AC 42...69 Hz between phases |
| Accuracy class | Class 0.2S active energy conforming to IEC 62053-22
Class 0.2 active energy conforming to ANSI C12.20
Class 0.2 active power conforming to IEC 61557-12
Class 0.5S reactive energy conforming to IEC 62053-24
Class 0.5 power factor conforming to IEC 61557-12
Class 0.2 voltage conforming to IEC 61557-12
Class 0.2 current conforming to IEC 61557-12 |
| Number of inputs | 3 digital 30 V AC
3 digital 60 V DC |
| Number of outputs | 1 pulse |
| Information displayed | Voltage
Current
Frequency
Power
Energy consumption
Harmonic distortion |
| Communication port protocol | Modbus RTU at 115 kbauds - 2-wire
ION at 115 kbauds - 2-wire
DNP3
IEC 61850
Modbus TCP/IP
Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s
RSTP 801.1d 2004 |
| Communication port support | ETHERNET
Screw terminal block: RS485 |
| Data recording | Sequence of event recording
Event logs
Min/max of instantaneous values
Harmonics logs
Alarm logs
GPS synchronisation
Waveform logs
Data logs
Time stamping
Trending/forecasting
Sag and swell logs
50 data recorders |
| Memory capacity | 512 MB |
| Connections - terminals | Voltage circuit: screw terminal block4
Control circuit: screw terminal block2
Current transformer: screw terminal block6
RS485 link: screw terminal block4
Digital input: screw terminal block8
Digital output: screw terminal block4
Ethernet network: RJ45 connector2 |
| Material | Polycarbonate |
Dimensions (mm)
(H x W x D) | 96x96x90.8mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 528 g |
