| Range of product | EOCR |
|---|

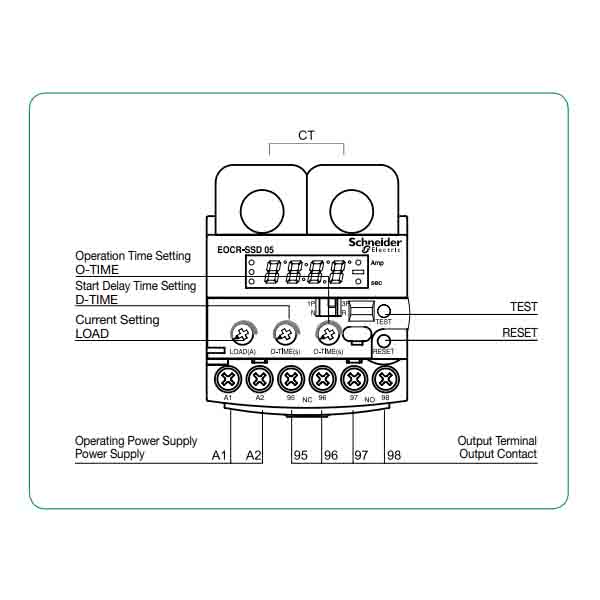

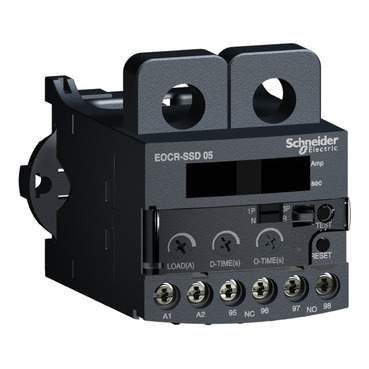

| Device short name | EOCR-SSD |
|---|
| Product or component type | Protection relay |
|---|
| Protection type | Overload, In > OC setting
Sensitivity to phase loss
Locked rotor for starting, In > 2 times OC setting |
|---|
| Product specific application | Overcurrent protection |
|---|
| network type | AC |
|---|
| Network frequency | 50...60 Hz |
|---|
| protection ajustment range | 0.5…6 A |
|---|
| Tripping threshold | 0.5...6 A |
|---|
| [Us] rated supply voltage | 220 V AC |
|---|
| Mounting support | 35 mm DIN rail
Panel |
|---|
| Contacts type and composition | 1 NC + 1 NO (OL) |
|---|
| Short-circuit and overload protection | By 4 A gG fuse |
|---|
| [Ue] rated operational voltage | 600 V AC 50...60 Hz for power circuit conforming to UL
690 V AC 50...60 Hz for power circuit conforming to CSA
690 V AC 50...60 Hz for power circuit conforming to IEC 60947-4-1 |
|---|
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-4-1 |
|---|
| Reset | Manual reset
Electrical 0…1 s by interruption of power supply |
|---|
| Time delay type | D-Time: 1...30 s
O-Time: 0.5, 1...10 s |
|---|
| Display type | 7 segments LED |
|---|
