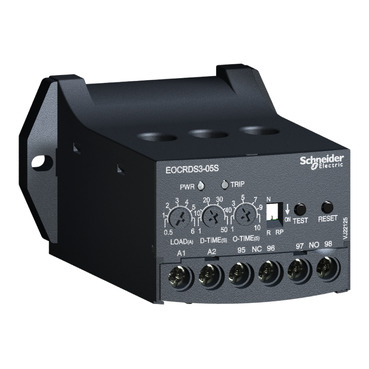

EOCRDS3-05S - Rờ Le Điện Tử Bảo Vệ Quá Dòng 0.5..6 A - 220VAC


Rờ Le Điện tử Bảo vệ quá dòng 0.5..6 A - 220VAC

  • Mã sản phẩm: EOCR-DS3-05S
  • Thẻ sản phẩm: eocr
Giá bán: 0 ₫ (bao gồm VAT)
Giá gốc: 0 ₫ (bao gồm VAT)
Tình trạng tồn kho: Tạm Hết
Vui lòng liên hệ Hotline: 0903370012 hoặc Email: Online@aecom.vn để đặt hàng!

Range of productEOCR
Device short nameEOCR-3D420
Product or component typeProtection relay
Protection typeOverload, In > OC setting
Sensitivity to phase loss
Sensitivity to phase reverse
Locked rotor, In > 3 times OC setting
Phase unbalance, 50 %
Product specific applicationOvercurrent protection
Analogue output range4...20 mA
network typeAC
Network frequency50...60 Hz
protection ajustment range0.5…10 A
Tripping threshold0.5...6 A

[Us] rated supply voltage220 V AC
Mounting support35 mm DIN rail
Panel
Contacts type and composition1 NO + 1 NC (OL)
