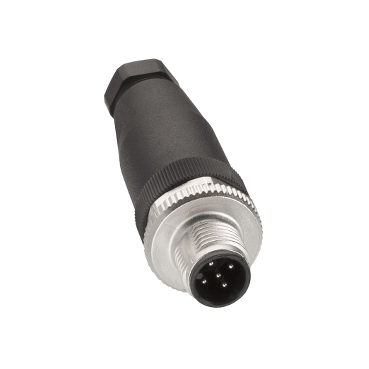

Male, M12, 5 pin, straight connector, cable gland Pg 7.
Specifications | XZCC12MDM50B |
| Range of product | Telemecanique Cabling components |
| Accessory / separate part categor | Cabling accessories |
Accessory / separate
part type | Connector |
| Electrical connection | Straight male connector M12, 5 pins |
| Collar material | Metal |
| Status LED | Without |
| Cable connection | Screw terminal / wire size <0.75 mm² / clamping
capacity 3…6 mm |
| Cable gland type | Pg 7 |
| Cable connector fixing | Screw-on |
| [Ue] rated operational voltage | 30 V AC
36 V DC |
| [In] rated current | 3 A |
| Enclosure material | Plastic |
| Minimum insulating resistance | 1000 GΩ |
| Contact resistance | 8000 µOhm |
| Net weight | 0.025 kg |
