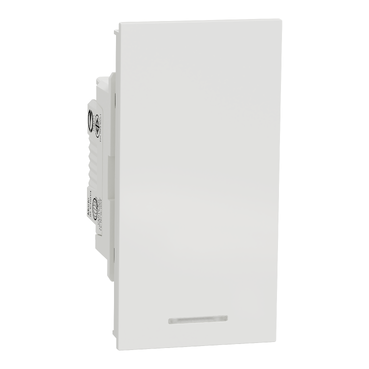

Specifications | M3T31_M2_WE |
| Range of product | AvatarOn A (Dòng công tắc ổ cắm AvatarOn A chữ nhật) |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Switch (Hạt công tắc chiếu sáng size M) |
| Load type | Resistive load
Inductive
Fluorescent load |
| Colour tint | White (WE) |
| Device presentation | Complete product |
| Rated current | 16 AX at 250 V AC 50 Hz |
| Switch function | 2-way (công tắc 2 chiều) |
| Switch application | Control switch |
| Clamping connection capacity | 2 x 1.5 mm² for solid cable(s)
2 x 2.5 mm² for stranded cable(s)
2 x 4 mm² |
| Connections - terminals | Screwless type terminals |
| Local signalling | Fluorescent (white) |
| Material | PC: dolly
PC 10 % GF: base
PC 10 % GF: base cover |
| Standards | IEC 60669-1 |
| IP degree of protection | IP20 |
| Device mounting | Flush |
| Width | 34.85 mm |
| Height | 69.3 mm |
| Depth | 32.7 mm |
| Embedding depth | 21.7 mm |
