Specifications | M3T_USB_WE |
| Range of product | AvatarOn A (Dòng công tắc ổ cắm AvatarOn A chữ nhật) |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

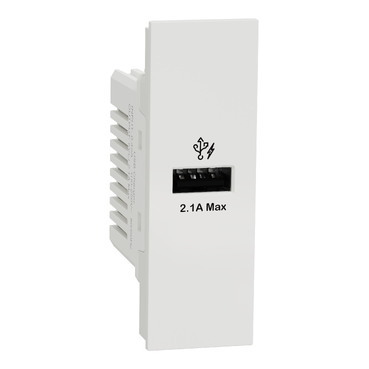

| Product or component type | USB charger (Ổ cắm cổng USB) |
| Device application | Power supply |
| Mounting mode | Flush-mounted (Gắn theo mặt nạ) |
| Integrated connection type | 1 USB port 5 V AC/DC, maximum load current: 2.1 A |
| Colour tint | White |
| Size | 1S |
| Surface finish | Gloss |
| [Ue] rated operational voltage | 110...220 V 50...60 Hz (1 pha) |
| Input power | 10.5 W |
| Maximum load current with 2 outputs used simultaneously | 2.1 A |
| Material | PC (UL94 V-0) |
| Clamping connection capacity | 0.5...4 mm² for solid or flexible cable(s) |
| IP degree of protection | IP20 |
| Standards | IEC 62368-1 |
| Height | 69.3 mm |
| Width | 23.1 mm |
| Depth | 35.5 mm |
| Embedding depth | 24.5 mm |
