Specifications | XACA4913 |
| Range of product | Harmony XACA |
| Country of Origin (Estimated) | Czech Republic (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

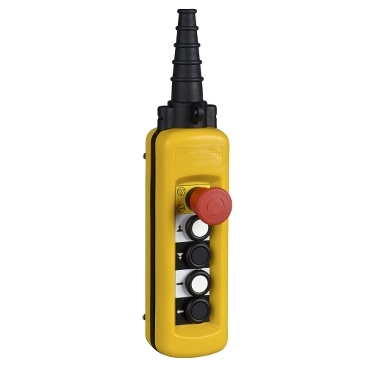

| Product or component type | Pendant control station |
| Device short name | XACA |
| Control station type | Double insulated |
| Enclosure material | Polypropylene |
| Electrical circuit type | Control circuit |
| Enclosure type | Complete ready for use |
| Control station application | Control of 2-speed hoist motor |
| Control station composition | 4 push-buttons + 1 emergency stop |
| Control button type | First push-button 1 NC + 2 NO raise, slow-fast
Second push-button 1 NC + 2 NO lower, slow-fast
Stop push-button Ø 40 mm 1 NC latching
Fourth push-button 1 NC + 2 NO left, slow-fast
Third push-button 1 NC + 2 NO right, slow-fast |
| Product compatibility | ZB2BE102 for emergency stop
XENG1191 for each direction |
| Mechanical interlocking | With mechanical interlocking between pairs |
| Control station colour | Yellow |
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Standards | IEC 60204-32
IEC 60947-5-1
CSA C22.2 No 14
UL 508 |
| Mechanical durability | 1000000 cycles |
| [Ithe] conventional enclosed thermal current | 10A |
| Contact operation | Staggered
Slow-break |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) |
| Net weight | 0.635 kg |
