Specifications | XALE3 |
| Range of product | Harmony XALE |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

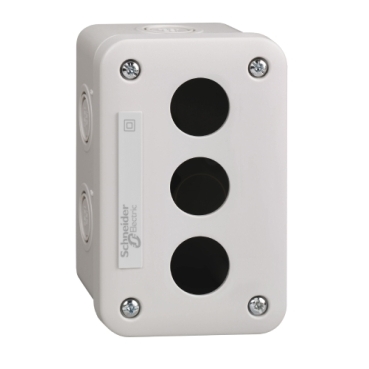

| Product or component type | Empty control station |
| Device short name | XALE |
| Product destination | For XB7 Ø 22 mm control and signalling units (Dùng Gắn dòng Đèn báo nút nhấn XB7) |
| Number of cut-out | 3 cut-outs |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Light grey (RAL 7035) |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Cable entry | 2 knock-outs, clamping capacity: 20 mm
6 knock-outs for ISO M20 |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Assembly style | For customer assembly |
| Standards | EN/IEC 62208
EN/IEC 60947-5-1
EN/IEC 60947-5-5
EN/IEC 60947-1 |
| Net weight | 0.1 kg |
