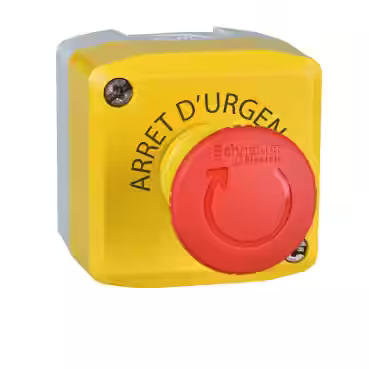

Specifications | XALK178E |
| Range of product | Harmony XALK |
| Country of Origin (Estimated) | Czech Republic (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Complete control station |
| Device short name | XALK |
| Control station application | Emergency switching off function
Emergency stop function |
| Product destination | For XB5 Ø 22 mm control and signalling units (Dùng Gắn dòng Đèn báo nút nhấn XB5) |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Yellow (RAL 1021) |
| Material | Polycarbonate |
| Operator profile | 1 mushroom head push-button |
| Operators description | Red unmarked 1 NO + 1 NC |
| Reset | Turn to release |
| Control station composition | 1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC unmarked marking |
| Contact operation | Slow-break |
| Cable entry | 1 knock-out for cable entry 0…14 mm
2 knock-outs for Pg 13 cable gland and ISO M20 0…12 mm |
| Mechanical durability | 300000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to EN/IEC 60947-1 |
| Standards | EN/IEC 60947-5-4
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-5
EN/ISO 13850
EN/IEC 60947-5-1
JIS C 4520
IEC 60364-5-53
EN/IEC 60947-1
EN/IEC 60204-1 |
| Net weight | 0.194 kg |
