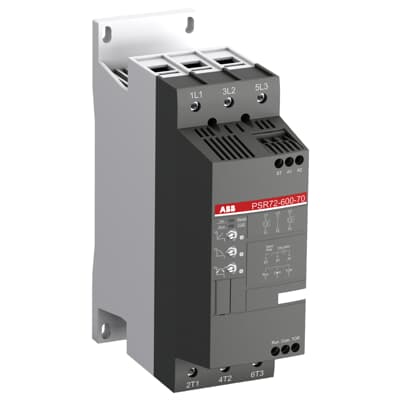

Softstarter PSR 37KW 72A 208 - 600VAC (PSR72-600-70).
Specifications: 1SFA896113R7000 |
| Range | Softstarter PSR |
| Product ID | 1SFA896113R7000 |
| Extended Product Type | PSR72-600-70 |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | PSR72 |
| Product specific application | Pumps, fans, compressors, and conveyors, Bow thruster, Elevator |
| Product destination | Asynchronous motors |
| Network number of phases | 3 phase |
| Ue power supply voltage | 208...600 V AC |
| [Uc] control circuit voltage | 100...240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Motor power kW | (400 V) 37 kW |
| Rated Operational Current - In-Line Connection (Ie) | 72A |
| Communication | FiledBusPlug(Optional) |
| Function | Soft start with voltage ramp
Soft stop with voltage ramp |
| Function available | Built-in bypass for energy saving and easy installation |
| Device connection | In the motor supply line |
| IP degree of protection | IP20 |
Dimensions (mm)
(H x W x D) | 220x180x70 mm |
| Net weight (Kg) | 2.1 Kg |
