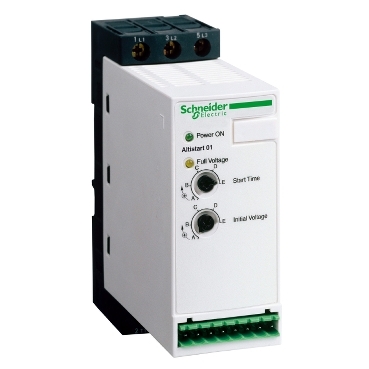

Soft starter for asynchronous motor - ATS01 - 25 A - 110..480V - 2.2..11 KW.
Specifications: ATS01N125FT |
| Range | Altistart 01 |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATS01 |
| Product specific application | Simple machine |
| Product destination | Asynchronous motors |
| Network number of phases | 1 phase |
| [Us] rated supply voltage | 110...480 V - 10...10 % |
| Supply voltage limits | 99…528 V |
| Motor power kW | 11 kW, 3 phases at 400 V
3 kW, 3 phases at 230 V
4 kW, 3 phases at 230 V
9 kW, 3 phases at 400 V
7.5 kW, 3 phases at 400 V
5.5 kW, 3 phases at 230 V
2.2 kW, 1 phase at 230 V |
| Motor power hp | 11 hp, 3 phases at 460 V
2 hp, 3 phases at 210 V
3 hp, 3 phases at 210 V
5 hp, 3 phases at 230 V
9 hp, 3 phases at 460 V
7.5 hp, 3 phases at 230 V |
| Motor power range AC-3 | 2.2…3 kW at 200…240 V 3 phases
2.2…3 kW at 200…240 V 1 phase
4…6 kW at 200…240 V 3 phases
7…11 kW at 200…240 V 3 phases
7…11 kW at 380…440 V 3 phases |
| IcL starter rating | 25A |
| Assembly style | With heat sink |
| Function available | Integrated bypass |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| IP degree of protection | IP20 |
Dimensions (mm)
(H x W x D) | 124x45x131 mm |
| Net weight (Kg) | 0.35 Kg |
