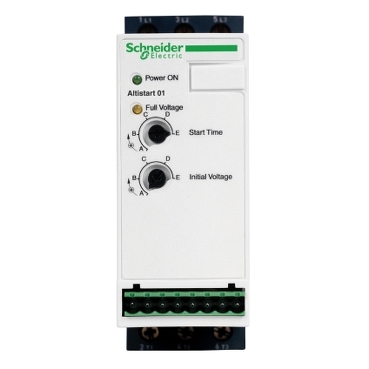

Soft starter for asynchronous motor - ATS01 - 9 A - 110..480V - 1.1..4 KW.
Specifications: ATS01N109FT |
| Range | Altistart 01 |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATS01 |
| Product specific application | Simple machine |
| Product destination | Asynchronous motors |
| Network number of phases | 1 phase |
| [Us] rated supply voltage | 110...480 V - 10...10 % |
| Supply voltage limits | 99…528 V |
| Motor power kW | 4 kW, 3 phases at 400 V
1.5 kW, 3 phases at 230 V
1.1 kW, 1 phase at 230 V |
| Motor power hp | 1 hp, 3 phases at 210 V
2 hp, 3 phases at 230 V
5 hp, 3 phases at 460 V |
| Motor power range AC-3 | 1.1…2 kW at 200…240 V 1 phase
2.2…3 kW at 200…240 V 3 phases
4…6 kW at 380…440 V 3 phases |
| IcL starter rating | 9A |
| Assembly style | With heat sink |
| Function available | Integrated bypass |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| IP degree of protection | IP20 |
Dimensions (mm)
(H x W x D) | 124x45x131 mm |
| Net weight (Kg) | 0.28 Kg |
