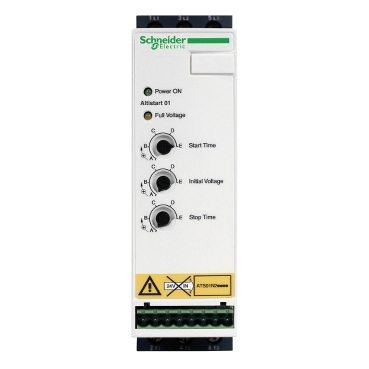

Soft starter for asynchronous motor - ATS01 - 32 A - 380..415V - 15 KW.
Specifications: ATS01N232QN |
| Range | Altistart 01 |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATS01 |
| Product specific application | Simple machine |
| Product destination | Asynchronous motors |
| Network number of phases | 3 phase |
| [Us] rated supply voltage | 380...415 V - 10...10 % |
| Supply voltage limits | 342…456 V |
| Motor power kW | 15 kW, 3 phases at 380...415 V |
| Motor power range AC-3 | 15…25 kW at 380…440 V 3 phases |
| IcL starter rating | 32A |
| Assembly style | With heat sink |
| Function available | Integrated bypass |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| IP degree of protection | IP20 |
Dimensions (mm)
(H x W x D) | 154x45x131 mm |
| Net weight (Kg) | 0.56 Kg |
