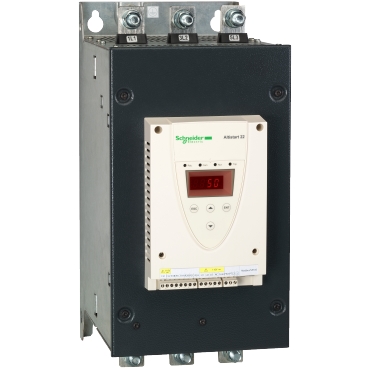

Soft starter-ATS22-control 220V-power 230V(90kW)/400...440V(160kW)
| Specifications: |
| Range | Altistart 22 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATS22 |
| Product specific application | Pumps and fans |
| Product destination | Asynchronous motors |
| Network number of phases | 3 phase |
| [Us] rated supply voltage | 230...440 V - 15...10 % |
| Supply voltage limits | 195…484 V |
| [Uc] control circuit voltage | 230 V - 15...10 % 50/60 Hz |
| Motor power kW | 160 kW 400 V
160 kW 440 V
90 kW 230 V |
| Motor power range AC-3 | 55…100 kW at 200…240 V 3 phases
110…220 kW at 380…440 V 3 phases |
| IcL starter rating | 320 A for connection in the motor supply line for standard applications |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Protection type | Phase failure: line
Thermal protection: motor
Thermal protection: starter |
| Assembly style | With heat sink |
| Function available | Integrated bypass |
| Device connection | In the motor supply line
To the motor delta terminals |
| Starting torque | Start with torque control (current limited to 3.5 In) |
| IP degree of protection | IP00 |
Dimensions (mm)
(H x W x D) | 425x206x299 mm |
