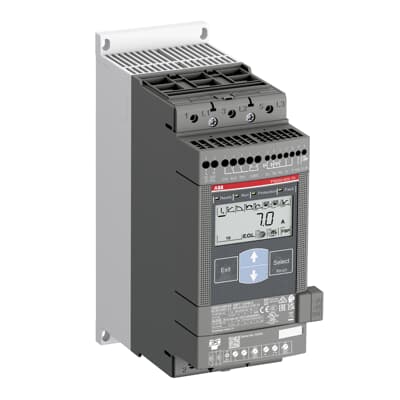

Khởi Động Mềm 3P 380VAC 30KW 60A 208 - 600VAC (PSE60-600-70)


Khởi Động Mềm 3P 380VAC 30KW (PSE60-600-70)

  • Mã sản phẩm: 1SFA897106R7000
Giá bán: 14.543.650 ₫ (bao gồm VAT)
Giá gốc: 33.783.200 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Softstarter PSE 30KW 60A 208 - 600VAC (PSE60-600-70)

Specifications:
RangeSoftstarter PSE
Product ID1SFA897106R7000
Extended Product TypePSE60-600-70
Country of Origin (Estimated)Sweden (Other)
Warranty12 months
CO/CQYes (if need)
Product name & Device short namePSE60
Product specific applicationPumps, fans, compressors, and conveyors, Bow thruster, Elevator
Product destinationAsynchronous motors
Network number of phases3 phase
Ue power supply voltage208...600 V AC
[Uc] control circuit voltage100 ... 250 V AC
Rated Control Circuit Voltage (Uc)24 V DC
Motor power kW(400 V) 30 kW
Rated Operational Current - In-Line Connection (Ie)60A
CommunicationModbus-RTU
Function availableBuilt-in bypass for energy saving and easy installation
Overload ProtectionBuild-in electronic overload protection
FunctionSoft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection FunctionElectronic overload protection, EOL; Locked rotor protection; Current underload protection
Device connectionIn the motor supply line
IP degree of protectionIP00
Dimensions (mm)
(H x W x D)
245x90x184 mm
Net weight (Kg)2.5 Kg

Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
11SFA897106R7000_Datasheet.pdf
2Link Catalogue Khởi Động Mềm ABB
3Bảng Giá Khởi động mềm ABB
