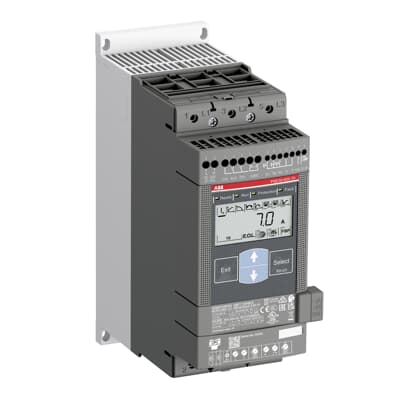

Softstarter PSE 15KW 25A 208 - 600VAC (PSE30-600-70)
| Specifications: |
| Range | Softstarter PSE |
| Product ID | 1SFA897103R7000 |
| Extended Product Type | PSE30-600-70 |
| Country of Origin (Estimated) | Sweden (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | PSE30 |
| Product specific application | Pumps, fans, compressors, and conveyors, Bow thruster, Elevator |
| Product destination | Asynchronous motors |
| Network number of phases | 3 phase |
| Ue power supply voltage | 208...600 V AC |
| [Uc] control circuit voltage | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Motor power kW | (400 V) 15 kW |
| Rated Operational Current - In-Line Connection (Ie) | 30A |
| Communication | Modbus-RTU |
| Function available | Built-in bypass for energy saving and easy installation |
| Overload Protection | Build-in electronic overload protection |
| Function | Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log |
| Protection Function | Electronic overload protection, EOL; Locked rotor protection; Current underload protection |
| Device connection | In the motor supply line |
| IP degree of protection | IP00 |
Dimensions (mm)
(H x W x D) | 245x90x184 mm |
| Net weight (Kg) | 2.5 Kg |
