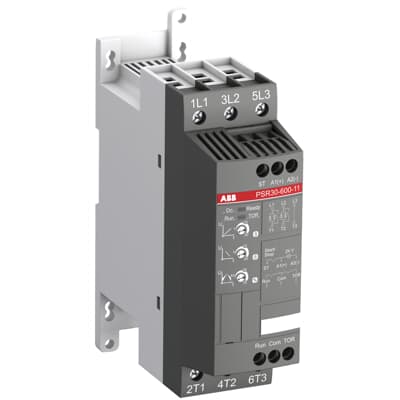

Khởi Động Mềm 3P 380VAC 18.5KW 30A 208 - 600VAC (PSR30-600-70)


Khởi Động Mềm 3P 380VAC 18.5KW (PSR30-600-70)

  • Mã sản phẩm: 1SFA896109R7000
Giá bán: 5.351.610 ₫ (bao gồm VAT)
Giá gốc: 12.431.100 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Softstarter PSR 18.5KW 30A 208 - 600VAC (PSR30-600-70).

Specifications:
RangeSoftstarter PSR
Product ID1SFA896109R7000
Extended Product TypePSR30-600-70
Country of Origin (Estimated)China (Other)
Warranty12 months
CO/CQYes (if need)
Product name & Device short namePSR30
Product specific applicationPumps, fans, compressors, and conveyors, Bow thruster, Elevator
Product destinationAsynchronous motors
Network number of phases3 phase
Ue power supply voltage208...600 V AC
[Uc] control circuit voltage100...240 V AC
Rated Control Circuit Voltage (Uc)24 V DC
Motor power kW(400 V) 15 kW
Rated Operational Current - In-Line Connection (Ie)30A
CommunicationFiledBusPlug(Optional)
FunctionSoft start with voltage ramp
Soft stop with voltage ramp
Function availableBuilt-in bypass for energy saving and easy installation
Device connectionIn the motor supply line
IP degree of protectionIP20
Dimensions (mm)
(H x W x D)
160x128x45 mm
Net weight (Kg)0.6 Kg

Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
11SFA896109R7000_Datasheet.pdf
2Link Catalogue Khởi Động Mềm ABB
3Bảng Giá Khởi động mềm ABB
