Khởi Động Mềm 3P 380VAC 110KW 210A 208 - 600VAC (PSTX210-600-70)


Khởi Động Mềm 3P 380VAC 110KW (PSTX210-600-70)

  • Mã sản phẩm: 1SFA898112R7000
Giá bán: 43.859.750 ₫ (bao gồm VAT)
Giá gốc: 101.880.900 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

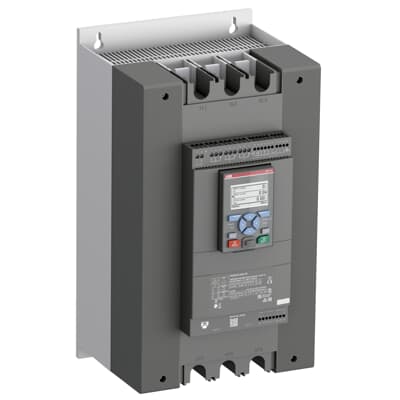

Softstarter PSTX 110KW 210A 208 - 600VAC (PSTX210-600-70).

Specifications:
RangeSoftstarter PSTX
Product ID1SFA898112R7000
Extended Product TypePSTX210-600-70
Country of Origin (Estimated)China (Other)
Warranty12 months
CO/CQYes (if need)
Product name & Device short namePSTX210
Product specific applicationPumps, fans, compressors and conveyors, Bow thruster, Elevator
Network number of phases3 phase
Ue power supply voltage208...600 V AC
[Uc] control circuit voltage100 ... 250 V AC
Rated Control Circuit Voltage (Uc)24 VDC
Rated Operational Power - In-Line Connection (Pe)(400 V) 110 kW
Rated Operational Current - In-Line Connection (Ie)210 A
CommunicationModbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP
Function availableBuilt-in bypass for energy saving and fast installation
Overload ProtectionBuilt-in electronic overload protection
FunctionAuto phase sequence detection, Automatic restart,,Current limit.Current limit ramp.
Dual current limit. Dynamic brake
Electricity metering.Electronic overload Time-to-cool
Emergency mode
Event log
Full voltage start
Jog with slow speed, forward and reverse
Keypad password
Kick start
Limp mode with two-phase motor control if one set of thyristors is shorted
Motor heating
Pre-start function
Pump cleaning
Real time clock
Sequence start
Soft start with torque control. Soft start with voltage ramp
Soft stop with torque control. Soft stop with voltage ramp
Stand still brake
Start reverse (external contactors)
Thyristor runtime measurement
Torque limit
Voltage sags detection
Show less
Protection FunctionBypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection
Device connectionBoth in-line and inside-delta connection
IP degree of protectionIP00
Dimensions (mm)
(H x W x D)
470x258x279 mm
Net weight (Kg)13.3 Kg

Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
11SFA898112R7000_Datasheet.pdf
2Link Catalogue Khởi Động Mềm ABB
3Bảng Giá Khởi động mềm ABB
