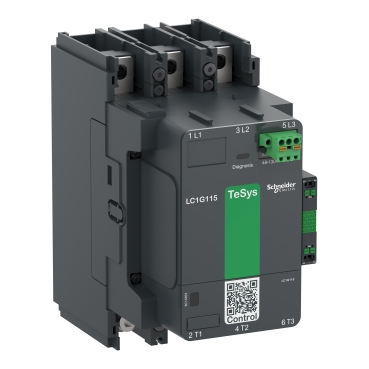

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 115A, standard version, 48…130V wide band AC/DC coil.
| Specifications |
| Range | TeSys Giga |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | LC1G |
| Device application | Power switching
Motor control |
| Poles description | 3P |
| [Ie] rated operational current | 250 A (at <40 °C) at <= 1000 V AC-1
115 A (at <60 °C) at <= 440 V AC-3 |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz
<= 460 V DC |
| [Uc] control circuit voltage | 48...130 V AC 50/60 Hz
48...130 V DC |
| Standards | EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1
JIS C8201-5-1 |
| Pole contact composition | 3 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| Connection pitch | 35 mm |
Dimensions (mm)
(HxWxD) | 193x143x193 mm |
| Net weight (Kg) | 3.6 kg |
