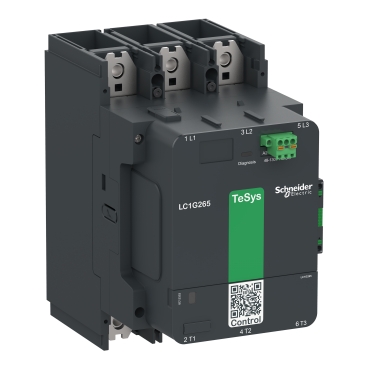

Khởi động từ Giga 3P 265A cuộn coil 48-130VAC/DC


Contactor Giga 3P 265A Coil 48-130VAC/DC

  • Mã sản phẩm: LC1G265EHEN
Giá bán: 14.243.900 ₫ (bao gồm VAT)
Giá gốc: 24.772.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 265A, standard version, 48…130V wide band AC/DC coil.

Specifications
RangeTeSys Giga
Country of Origin (Estimated)China (Other)
Warranty12 months
CO/CQYes (if)
Product name & Device short nameLC1G
Device applicationPower switching
Motor control
Poles description3P
[Ie] rated operational current385 A (at <40 °C) at <= 1000 V AC-1
265 A (at <60 °C) at <= 440 V AC-3
[Ue] rated operational voltage<= 1000 V AC 50/60 Hz
<= 460 V DC
[Uc] control circuit voltage48...130 V AC 50/60 Hz
48...130 V DC
StandardsEN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1
JIS C8201-5-1
Pole contact composition3 NO
Auxiliary contact composition1 NO + 1 NC
Connection pitch45 mm
Dimensions (mm)
(HxWxD)
225x140x226 mm
Net weight (Kg)7.5 kg
Motor power kW132 kW at 400 V AC 50/60 Hz (AC-3e)
132 kW at 415 V AC 50/60 Hz (AC-3e)
160 kW at 440 V AC 50/60 Hz (AC-3e)

Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
1LC1G265EHEN_Datasheet.pdf
2Catalogue Contactor LC1G Schneider
3Bảng giá Price list Contactor LC1G
