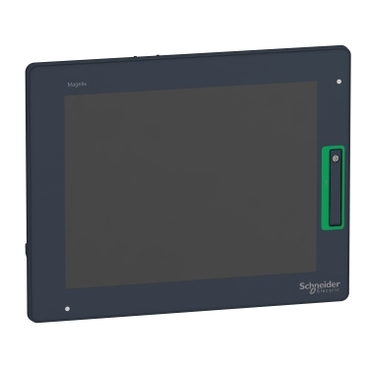

Flat screen, Harmony GTU, 10.4 inch wide display, 16 million colours.
Specifications | HMIDT542 |
| Range of product | Harmony GTU |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| product or component type | Flat screen |
| Terminal type | Touchscreen display |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Supply voltage limits | 10.8…28.8 V |
| Power consumption in W | 15 W |
| Inrush current | 30 A |
| Integrated connection type | USB 2.0 type A
USB 2.0 type mini B |
| Touchscreen resolution | 1024 x 1024 |
| Pixel resolution | 800 x 600 |
| Display size | 10.4 inch |
| Aspect ratio | 4:03 |
| Display type | Colour TFT LCD |
| Display resolution | 800 x 600 pixels SVGA |
| Display colour | 16 million colours |
| Backlight lifespan | 50000 hours |
| Touch panel | Multi touch analogue resistive |
| Function available | Brightness sensor |
| Type of cooling | Natural convection |
| Type of installation | Indoor installation |
| cut-out dimensions | 259 (+ 1/- 0) x 201 (+ 1/- 0) mm |
| Dimensions (HxWxD) | 214.5x272.5x67 mm |
| Net weight | 2.7 Kg |
