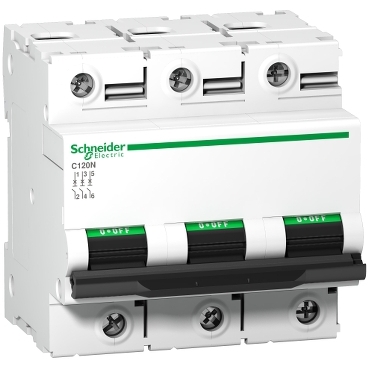

A9N18364 - Cầu dao tự động Acti9-C120N 3P 63A 10KA


MCB Schneider 3P 63A 10KA Acti9-C120N

  • Mã sản phẩm: A9N18364
Giá bán: 2.527.800 ₫ (bao gồm VAT)
Giá gốc: 4.213.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Miniature Circuit Breaker - C120N - 3P - 63A - C curve - 10000A Icn at 400 V AC

Specifications
RangeMiniature circuit-breaker Acti9 C120N
Country of Origin (Estimated)China (other)
Warranty12 months
CO/CQYes (if)
Product name & Device short nameMCB Acti9 C120N
Device applicationDistribution
Poles description3P
[In] rated current63 A at 30 °C
Trip unit technologyThermal-magnetic
Curve codeC
Breaking capacity (Icu)10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1
[Ics] rated service breaking capacity7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
StandardsEN/IEC 60947-2
EN/IEC 60898-1
[Ue] rated operational voltage<= 375 V DC
380...415 V AC 50/60 Hz
220...240 V AC 50/60 Hz
440 V AC 50/60 Hz
230...400 V AC 50/60 Hz
[Ui] rated insulation voltage500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Control typeToggle
Local signallingON/OFF indication
Mounting supportDIN rail
Mechanical durability20000 cycles
Electrical durability10000 cycles
Dimensions (mm)
(H x W x D)
81x73x81 mm



Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
1A9N18364_Datasheet.pdf
2Catalogue MCB Acti 9 Schneider
3Bảng giá Price list MCB Acti 9, Easy9 Schneider
