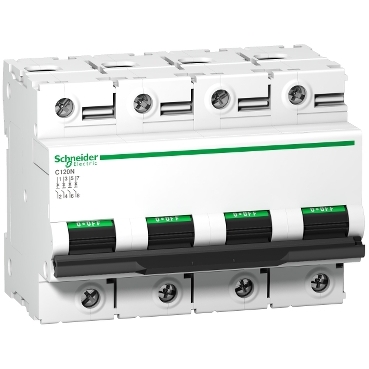

Miniature Circuit Breaker - C120N - 4P - 80A - C curve - 10000A Icn at 400 V AC
Specifications - A9N18372 |
| Range | Miniature circuit-breaker Acti9 C120N |
| Country of Origin (Estimated) | China (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | MCB Acti9 C120N |
| Device application | Distribution |
| Poles description | 4P |
| [In] rated current | 80A |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity (Icu) | 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ics] rated service breaking capacity | 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz |
| Standards | EN/IEC 60898-1
EN/IEC 60947-2 |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz
<= 500 V DC
220...240 V AC 50/60 Hz
440 V AC 50/60 Hz
230...400 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Toggle |
| Local signalling | Trip indicator |
| Mounting support | DIN rail |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Net weight | 0.82 kg |
Dimensions (mm)
(H x W x D) | 81x108x73 mm |
