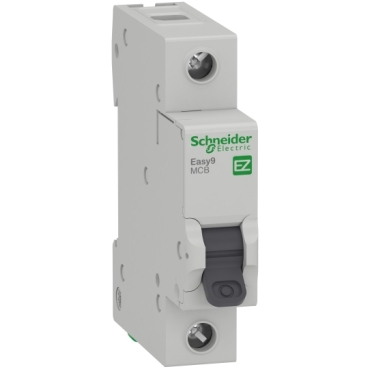

Miniature Circuit Breaker- Easy9- 1P - 32 A - C curve - 4500 A - 230 V.
| Specifications |
| Range | Miniature circuit-breaker Easy9 |
| Country of Origin (Estimated) | Thailand |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | Easy9 MCB |
| Device application | Distribution |
| Poles description | 1P |
| [In] rated current | 32A |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity (Icu) | 4500 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
4500 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 |
| [Ics] rated service breaking capacity | 4.5 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 |
| Suitability for isolation | Yes conforming to IEC 60898-1 |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60898-1 |
| Control type | Toggle |
| Mounting support | DIN rail |
| Mechanical durability | 10000 cycles |
| Electrical durability | 4000 cycles |
Dimensions (mm)
(H x W x D) | 81x18x66.5 mm |
