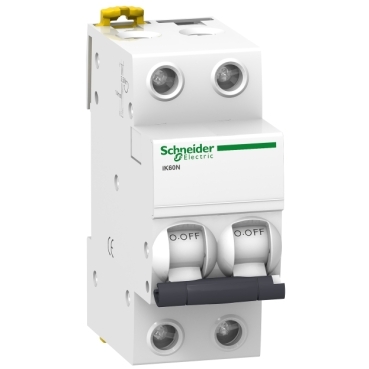

Miniature Circuit Breaker - iK60N - 2P - 25A - C curve - 6000 A Icn at 230 V AC.
Specifications - A9K27225 | |
| Range | Miniature circuit-breaker Acti9 iK60 | |
| Country of Origin (Estimated) | Thailand | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | MCB Acti9 iK60N | |
| Device application | Distribution | |
| Poles description | 2P | |
| [In] rated current | 25A | |
| Trip unit technology | Thermal-magnetic | |
| Curve code | C | |
| Breaking capacity (Icu) | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 | |
| [Ics] rated service breaking capacity | 6000 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz | |
| Suitability for isolation | Yes conforming to EN/IEC 60898-1 | |
| [Ue] rated operational voltage | 230 V AC 50 Hz | |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 | |
| Control type | Toggle | |
| Mounting support | DIN rail | |
| Mechanical durability | 20000 cycles | |
| Electrical durability | 10000 cycles | |
Dimensions (mm)
(H x W x D) | 85x36x78.5 mm | |
