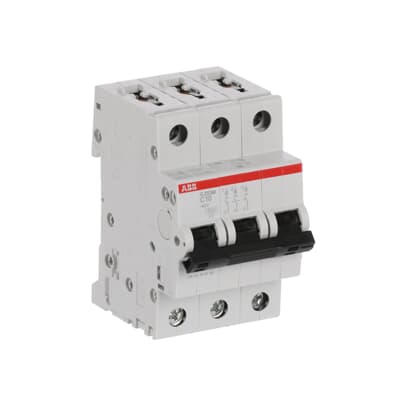

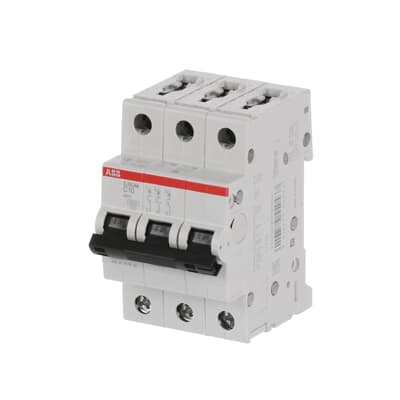

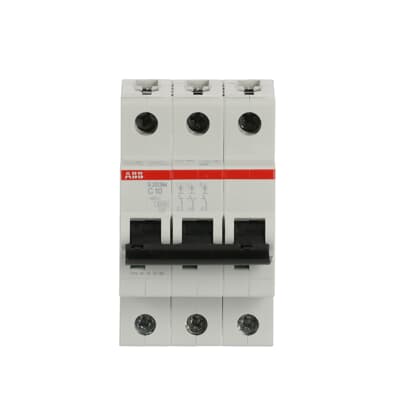

Miniature Circuit Breaker - 3P - C - 40 A (S203M-C40).
Specifications | 2CDS273001R0404 |
| Extended Product Type | S203M-C40 |
| Range | System pro M compact S200M miniature circuit breakers |
| Country of Origin (Estimated) | China (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | MCB System pro M compact S200M |
| Device application | Distribution |
| Number of Poles | 3P |
| [In] rated current | 40A |
| Trip unit technology | Thermal-magnetic |
| Input Voltage Type | AC/DC |
| Tripping Characteristic | C |
Rated Ultimate ShortCircuit Breaking
Capacity (Icu) | (230 V AC) 25 kA
(400 V AC) 15 kA
(440 V AC) 15 kA
(230 V) 25 kA
(400 V) 15 kA |
Rated Service ShortCircuit Breaking
Capacity (Ics) | (230 V AC) 7.5 kA |
| Standards | IEC/EN 60898-1
CSA 22.2 No. 235
IEC/EN 60947-2
UL 1077 |
| [Ue] rated operational voltage | acc. to IEC 60898-1 400 V AC
acc. to IEC 60898-1 400 V
acc. to IEC 60947-2 440 V AC |
| [Ui] rated insulation voltage | acc. to IEC/EN 60664-1 440 V |
| Contact Position Indication | Red ON / Green OFF |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Actuator Marking | I / O |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity | Busbar 10 / 10 mm²
Flexible with Ferrule 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Flexible 0.75 ... 25 mm²
Rigid 0.75 ... 35 mm²
Rigid 0.75 ... 35 mm²
Stranded 0.75 ... 35 mm² |
Dimensions (mm)
(H x W x D) | 88 x 52.5 x 69 mm |
| Net Weight | 0.375 kg |
