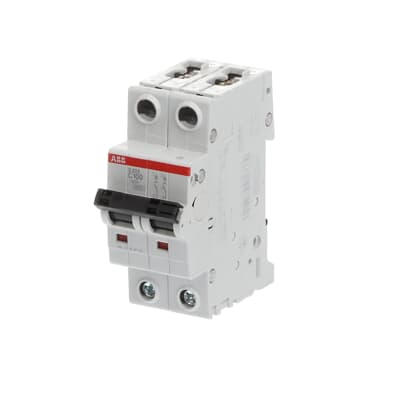

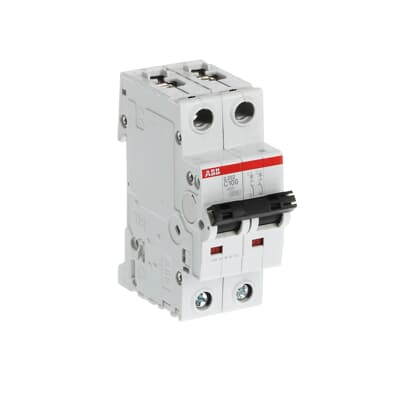

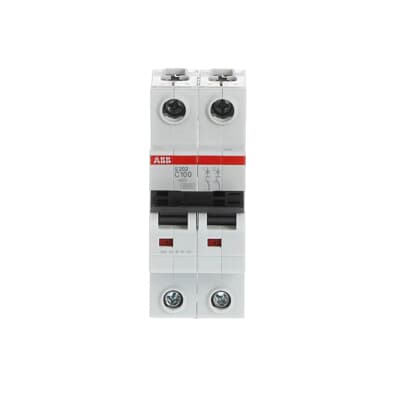

Miniature Circuit Breaker - 2P - C - 100 A (S202-C100).
Specifications | 2CDS252001R0824 |
| Extended Product Type | S202-C100 |
| Range | Miniature Circuit Breakers S200 |
| Country of Origin (Estimated) | Germany (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | MCB Compact Home S200 |
| Device application | Distribution |
| Number of Poles | 2P |
| Input Voltage Type | AC |
| [In] rated current | 100A |
| Trip unit technology | Thermal-magnetic |
| Input Voltage Type | AC |
| Tripping Characteristic | C |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 10 kA
(400 V AC) 6 kA
(400 V) 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 6 kA |
| Standards | IEC/EN 60898-1
IEC/EN 60947-2 |
| [Ue] rated operational voltage | acc. to IEC 60898-1 400 V AC
acc. to IEC 60898-1 400 V
acc. to IEC 60947-2 400 V AC |
| [Ui] rated insulation voltage | acc. to IEC/EN 60664-1 440 V |
| Contact Position Indication | ON / OFF |
| Electrical Endurance | 10000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Actuator Type | Toggle |
| Actuator Marking | I / O |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity | Busbar 16 / 16 mm²
Conductor 2.5 ... 50 mm²
Flexible 4 ... 35 mm²
Rigid 2.5 ... 50 mm²
Stranded 2.5 ... 50 mm² |
Dimensions (mm)
(H x W x D) | 88 x 35 x 69 mm |
| Net Weight | 0.28 kg |
