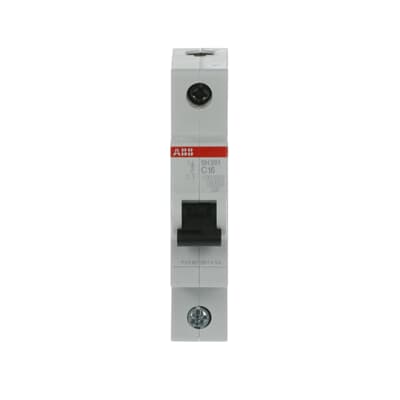

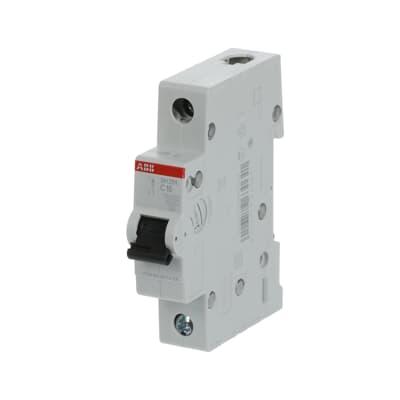

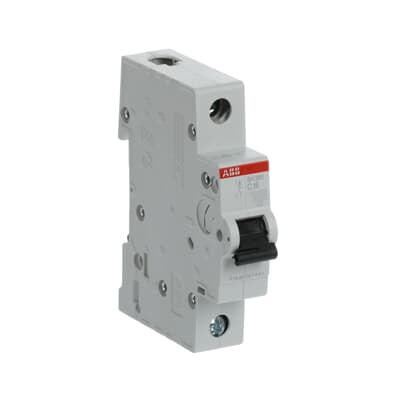

Miniature Circuit Breaker - 1P - C - 16A (SH201-C16).
Specifications | 2CDS211001R0164 |
| Range | Miniature Circuit Breakers SH200 |
| Country of Origin (Estimated) | China (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | MCB Compact Home SH200 |
| Device application | Distribution |
| Number of Poles | 1P |
| [In] rated current | 16A |
| Trip unit technology | Thermal-magnetic |
| Input Voltage Type | AC |
| Tripping Characteristic | C |
| Rated Short-Circuit Capacity | (AC) 6 kA
(230 / 400 V AC) 6 kA
(230 V) 6 kA |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 6 kA |
| Standards | IEC/EN 60898-1 |
| [Ue] rated operational voltage | acc. to IEC 60898-1 230 V AC |
| [Ui] rated insulation voltage | acc. to IEC/EN 60664-1 440 V |
| Contact Position Indication | ON / OFF |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Actuator Type | Toggle |
| Actuator Marking | I / O |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity | Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm² |
Dimensions (mm)
(H x W x D) | 85 x 17.5 x 69 mm |
| Net Weight | 0.125 kg |
