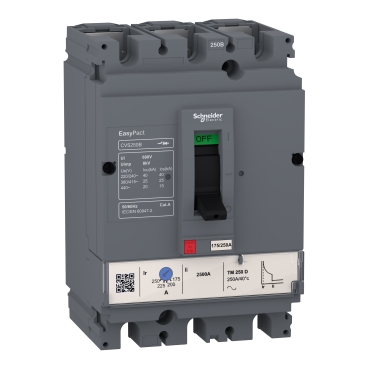

Circuit breaker, EasyPact CVS160B, 25kA at 415VAC, 125A, TM-D trip unit, 3P3d
| Specifications LV516302 |
| Range | EasyPact |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | Easypact CVS160B |
| Device application | Distribution |
| Poles description | 3P /4P |
| Protected poles description | 3P 3d /4P 3d |
| [In] rated current | 125 A at 40 °C |
| Network type | AC |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 125 A |
| Thermal protection adjustment range | 87.5…125 A |
| Long time pick-up adjustment range | 0.7...1 x In |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Connection pitch | 35 mm |
| Breaking capacity [Icu] | 36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 25,000 cycles |
| Electrical durability | 12000 cycles 415V In conforming to IEC 60947-2 |
| Protection type | Short-circuit protection (magnetic)
Overload protection (thermal) |
Dimensions (mm)
(W x H x D) | 3P/105x161x86mm
4P/140x161x86mm |
| Net weight (Kg) | 3P/1.8Kg
4P/2.2Kg |
Front-panel Cutouts
For toggle (X*Y) | 29x76mm |
Front-panel Cutouts
For toggle with access to trip unit | 3P/108x180mm
4P/143x108mm |
