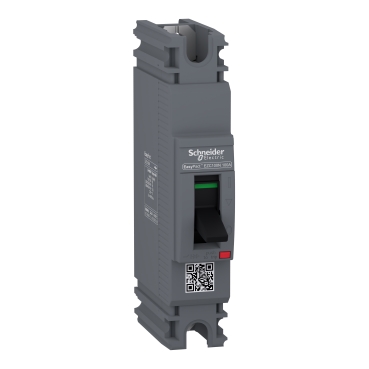

Circuit breaker, EasyPact EZC100N, TMD, 60A, 1 pole 1d
| Specifications EZC100N1060 |
| Range | EasyPact |
| Country of Origin (Estimated) | Thailand |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | Easypact EZC100N |
| Device application | Distribution |
| Poles description | 1P |
| Protected poles description | 1P 1d |
| [In] rated current | 60 A at 50 °C |
| Network type | AC /DC |
| [Ue] rated operational voltage | 125 V DC conforming to IEC 60947-2
415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 60 A |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Connection pitch | 25 mm |
| Breaking capacity [Icu] | 18 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 9 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 8500 cycles |
| Electrical durability | Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Protection type | Overload protection
Short-circuit protection |
Dimensions (mm)
(H x W x D) | 130x25x60mm |
| Net weight (Kg) | 0.28Kg |
Door cut-out (small)
Dimensions (X*Y) | 52x24mm |
| Door cut-out (large) (X*Y) | 52x24mm |
