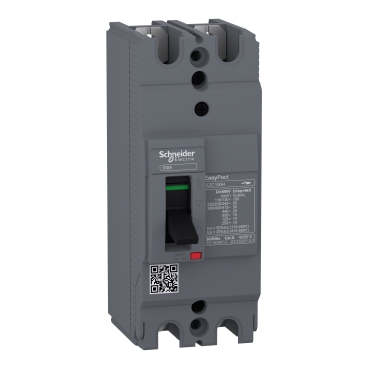

Circuit breaker,EasyPact EZC100H ,TMD, 75A, 2 pole 2d
| Specifications EZC100H2075 |
| Range | EasyPact |
| Country of Origin (Estimated) | Thailand |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | Easypact EZC100H |
| Device application | Distribution |
| Poles description | 1P/2P |
| Protected poles description | 1P 1d/ 2P 2d |
| [In] rated current | 75 A at 40 °C |
| Network type | AC /DC |
| [Ue] rated operational voltage | 125 V DC conforming to IEC 60947-2
415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 75 A |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Connection pitch | 25 mm |
| Breaking capacity [Icu] | 10 kA Icu at 125 V DC 1P conforming to IEC 60947-2
25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 5 kA at 125 V DC conforming to IEC 60947-2
12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 8500 cycles |
| Electrical durability | Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Protection type | Overload protection
Short-circuit protection |
Dimensions (mm)
(H x W x D) | 1P/130x25x60mm
2P/130x50x60mm |
| Net weight (Kg) | 1P/0.28Kg
2P/0.6Kg |
Door cut-out (small)
Dimensions (X*Y) | 52x24mm |
| Door cut-out (large) (X*Y) | 1P/52x24mm
2P/52x47mm |
