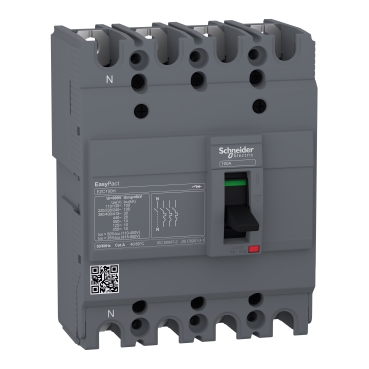

Circuit breaker Easypact EZC100H - TMD - 50 A - 4 poles 3d
| Specifications EZC100H4050 |
| Range | EasyPact |
| Country of Origin (Estimated) | Thailand |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | Easypact EZC100H |
| Device application | Distribution |
| Poles description | 3P /4P |
| Protected poles description | 3P 3d /4P 3d |
| [In] rated current | 50 A at 40 °C |
| Network type | AC /DC |
| [Ue] rated operational voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 50 A |
| [Ui] rated insulation voltage | 690 VAC 50/60 Hz conforming to IEC 60947-2 |
| Connection pitch | 25 mm |
| Breaking capacity [Icu] | 30 kA Icu at 380...400 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 15 kA at 380...400 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA at 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 8500 cycles |
| Electrical durability | Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Protection type | Overload protection
Short-circuit protection |
Dimensions (mm)
(H x W x D) | 3P/130x75x60mm
4P/130x100x60mm |
| Net weight (Kg) | 3P/0.78Kg
4P/1.0Kg |
Door cut-out (small)
Dimensions (X*Y) | 52x24mm |
| Door cut-out (large) (X*Y) | 3P/52x72mm
4P/52x97mm |
