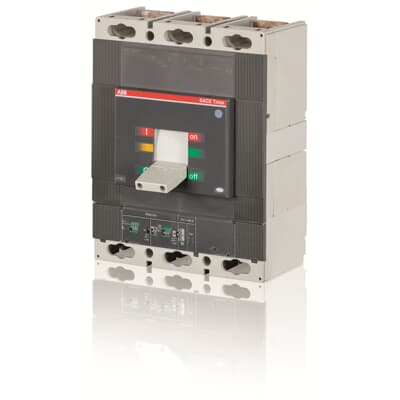

Specifications: 1SDA060289R1 |
| Range | Moulded Case Circuit Breaker SACE Tmax T |
| Country of Origin (Estimated) | Italy (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | TMAX T6H |
| Device application | Distribution |
| Poles description | 3P |
| [In] rated current | 800 A at 40 °C |
| Network type | AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Suitability for isolation | Yes conforming to IEC 60947-2; |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Protection type | L : Protection against overload
I : Instantaneous protection against short-circuit
S: Against short-circuit with delayed trip |
| Rated Uninterrupted Current (Iu) | 800 A |
| [Ir] long-time protection pick-up adjustment range | 0.4...1 x In |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz |
| Breaking capacity [Icu] | (380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA |
| [Ics] rated service breaking capacity | (380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA |
| Mechanical durability | 20.000 cycle |
| Electrical durability | 5000 cycle |
Dimensions (mm)
(HxWxD) | 268 x 210 x 103.5 mm |
| Net weight (Kg) | 9.652 Kg |
| Door cutout Dimensions (XxY) Flange for the compartment door | 152 x 138 mm |
