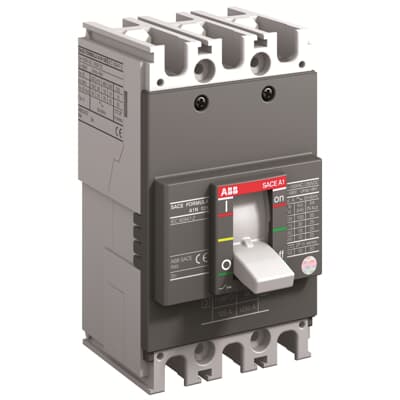

Bộ Ngắt Mạch Tự Động A1B 3P 32A 18KA Trip TMF


MCCB 3P 32A 18KA (A1B)

  • Mã sản phẩm: 1SDA068758R1
Giá bán: 1.274.790 ₫ (bao gồm VAT)
Giá gốc: 2.093.300 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Specifications
RangeMoulded Case Circuit Breaker SACE FORMULA A1B
Country of Origin (Estimated)Italy (Other)
Warranty12 months
CO/CQYes (if)
Product name & Device short nameFORMULA A1B
Extended Product TypeA1B 125 TMF 32-400 3p F F
Device applicationWind, Solar, Data Center, Building Infrastructure, GenSet, Mining, Marine, Industries, Utilities.
Poles description3P/ 4P
Rated Current (In)32 A
Network typeAC
[Ue] rated operational voltage550 V AC
250 V DC
Suitability for isolationYes conforming to IEC 60947-2;
ReleaseTMF
Release TypeTM
Protection typeThermal-magnetic trip unit
[Ui] rated insulation voltage690 V
Breaking capacity [Icu](380 V AC) 18 kA
(415 V AC) 18 kA
[Ics] rated service breaking capacity(380 V AC) 9 kA
(415 V AC) 5 kA
Mechanical durability8500 cycle
Electrical durability1500 cycle
Dimensions (mm)
(HxWxD)
3P: 130x76.2x60 mm
4P: 130x101.6x60 mm
Net weight (Kg)3P: 0.7 Kg
4P: 0.925 Kg
Door cutout Dimensions (XxY) A=61mm (A=Depth)3P: 73x47mm
4P: 98x47mm

Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
11SDA068758R1_Datasheet.pdf
2Catalogue MCCB Fomular ABB
3Bảng giá Price list Máy Cắt Fomular-2024
