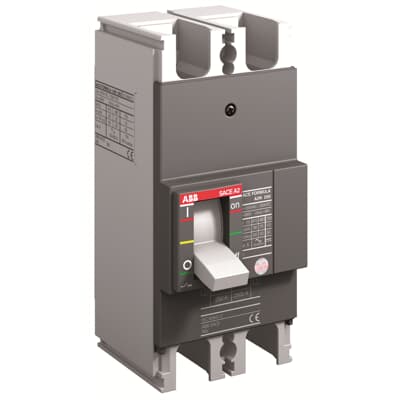

Specifications: 1SDA068778R1 |
| Range | Moulded Case Circuit Breaker SACE FORMULA A2N |
| Country of Origin (Estimated) | Italy (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | FORMULA A2N |
| Extended Product Type | A2N 250 TMF 150-1500 2P F F |
| Device application | Wind, Solar, Data Center, Building Infrastructure, GenSet, Mining, Marine, Industries, Utilities. |
| Poles description | 1P/2P |
| Rated Current (In) | 150 A |
| Network type | AC |
| [Ue] rated operational voltage | 415 V AC
125 V DC |
| Suitability for isolation | Yes conforming to IEC 60947-2; |
| Release | TMF |
| Release Type | TM |
| Protection type | Thermal-magnetic trip unit |
| [Ui] rated insulation voltage | 690 V |
| Breaking capacity [Icu] | (240 V AC) 50 kA
(380 V AC) 36 kA
(415 V AC) 36 kA |
| [Ics] rated service breaking capacity | (240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA |
| Mechanical durability | 10.000 cycle |
| Electrical durability | 4.000 cycle |
Dimensions (mm)
(HxWxD) | 1P: 150x35x60 mm
2P: 150x70x60 mm |
| Net weight (Kg) | 1P: 0.37 Kg
2P: 0.73 Kg |
| Door cutout Dimensions (XxY) A=61mm (A=Depth) | 1P: 27x47 mm
2P: 52.5x47 mm |
