| Specifications |
| Range | Moulded Case Circuit Breaker SACE Tmax XT1B |
| Country of Origin (Estimated) | Italy (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

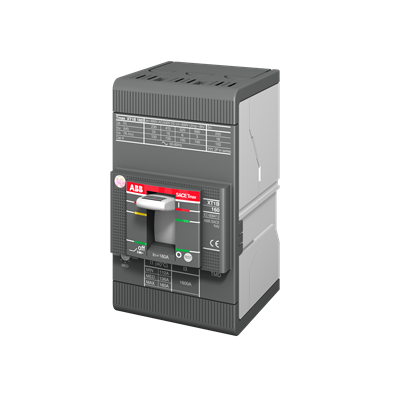

| Product name & Device short name | TMAX XT1B |
| Extended Product Type | XT1B 160 TMD 100-1000 3p F F |
| Device application | Wind, Solar, Data Center, Building Infrastructure, GenSet, Mining, Marine, Industries, Utilities. |
| Poles description | 3P |
| Rated Current (In) | 100 A |
| Network type | AC |
| [Ue] rated operational voltage | 690 V AC
500 V DC |
| Suitability for isolation | Yes conforming to IEC 60947-2; |
| Release | TMD |
| Release Type | TM |
| Protection type | Thermal-magnetic |
| Setting Range | 70...100 A |
| [Ui] rated insulation voltage | 800 V |
| Breaking capacity [Icu] | (380 V AC) 18 kA
(415 V AC) 18 kA |
| [Ics] rated service breaking capacity | (380 V AC) 18 kA
(415 V AC) 18 kA |
| Mechanical durability | 25000 cycle |
| Electrical durability | 8000 cycle |
Dimensions (mm)
(HxWxD) | 3P: 130x76.2x70 mm
4P: |
| Net weight (Kg) | 3P: 1.1kg
4P: |
| Door cutout Dimensions (XxY) Flange for the compartment door | 3P:
4P: |
