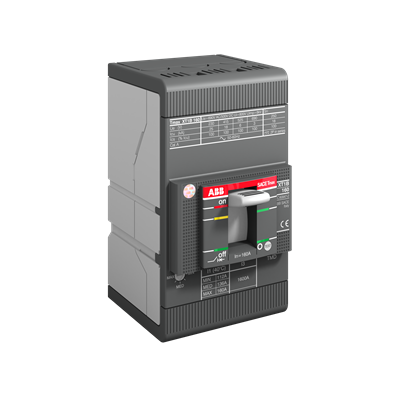

Bộ Ngắt Mạch Tự Động XT1B 3P 50A 18KA Trip TMD


MCCB 3P 50A 18KA (XT1B)

  • Mã sản phẩm: 1SDA066804R1
Giá bán: 1.820.720 ₫ (bao gồm VAT)
Giá gốc: 4.335.100 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Specifications
RangeMoulded Case Circuit Breaker SACE Tmax XT1B
Country of Origin (Estimated)Italy (Other)
Warranty12 months
CO/CQYes (if)
Product name & Device short nameTMAX XT1B
Extended Product TypeXT1B 160 TMD 50-500 3p F F
Device applicationWind, Solar, Data Center, Building Infrastructure, GenSet, Mining, Marine, Industries, Utilities.
Poles description3P
Rated Current (In)40 A
Network typeAC
[Ue] rated operational voltage690 V AC
500 V DC
Suitability for isolationYes conforming to IEC 60947-2;
ReleaseTMD
Release TypeTM
Protection typeThermal-magnetic
Setting Range35...50 A
[Ui] rated insulation voltage800 V
Breaking capacity [Icu](380 V AC) 18 kA
(415 V AC) 18 kA
[Ics] rated service breaking capacity(380 V AC) 18 kA
(415 V AC) 18 kA
Mechanical durability25000 cycle
Electrical durability8000 cycle
Dimensions (mm)
(HxWxD)
3P: 130x76.2x70 mm
4P:
Net weight (Kg)3P: 1.1kg
4P:
Door cutout Dimensions (XxY) Flange for the compartment door3P:
4P:

Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
11SDA066804R1_Datasheet.pdf
2Catalogua MCCB TMAX XT ABB
3Bảng giá Price list Máy Cắt MCCB Tmax XT-2024
