Specifications |

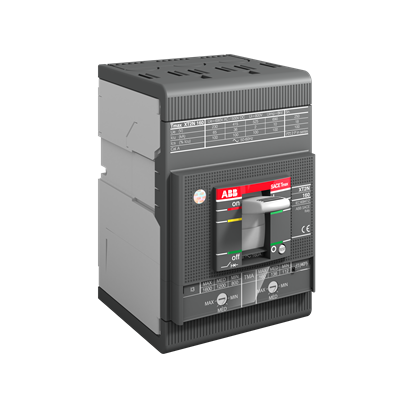

Range | Moulded Case Circuit Breaker SACE Tmax XT2S |
Country of Origin (Estimated) | Italy (Other) |
Warranty | 12 months |
CO/CQ | Yes (if) |
Product name & Device short name | TMAX XT2S |
Extended Product Type | XT2S 160 TMA 80-800 3p F F |
Device application | Wind, Solar, Data Center, Building Infrastructure, GenSet, Mining, Marine, Industries, Utilities. |
Poles description | 3P |
Rated Current (In) | 80 A |
Network type | AC |
[Ue] rated operational voltage | 690 V AC 500 V DC |
Suitability for isolation | Yes conforming to IEC 60947-2; |
Release | TMA |
Release Type | TM |
Protection type | Thermal-magnetic |
Setting Range | 56…80 A |
[Ui] rated insulation voltage | 800 V |
Breaking capacity [Icu] | (380 V AC) 50 kA (415 V AC) 50 kA |
[Ics] rated service breaking capacity | (380 V AC) 50 kA (415 V AC) 50 kA |
Mechanical durability | 25000 cycle |
Electrical durability | 8000 cycle |
Dimensions (mm) (HxWxD) | 3P: 130x90x82.5 mm 4P: |
Net weight (Kg) | 3P: 1.4kg 4P: |
Door cutout Dimensions (XxY) Flange for the compartment door | 3P: 4P: |
