Specifications | M3T_SIS_WE |
| Range of product | AvatarOn A (Dòng công tắc ổ cắm AvatarOn A chữ nhật) |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

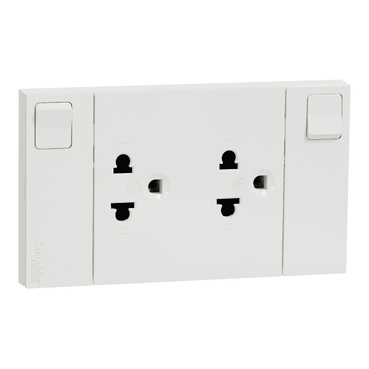

| Product or component type | Switched socket (Ổ cắm có công tắc ngắt nguồn) |
| Device application | Power supply |
| Device presentation | Complete product (Hạt và mặt nạ trọn bộ) |
| Colour tint | White |
| Main colour tint | White |
| Rated current | 16 A socket-outlet ( Ổ cắm chịu được dòng định mức 16A) |
| [Ue] rated operational voltage | 250 V AC 50...60 Hz (Dùng trong điện dân dụng 1 pha) |
| Socket number | 2 (2 vị trí cắm) |
| Outlet standard description | 3 pins (Mỗi vị trí cắm có 3 chân) |
| Outlet standard deviation | Universal |
| Switch function | 1 way (1 chiều) |
| Number of gangs | 2 gangs |
| Connections - terminals | Push-in (đấu nối Cắm nhanh) |
| Number of terminals | 3 |
| Clamping connection capacity | 2 x 1.5...2 x 4 mm² for solid cable(s)
2 x 1.5...2 x 4 mm² for stranded cable(s) |
| Wire stripping length | 13 mm |
| Material | Polycarbonate: cover
Polycarbonate: base
Polycarbonate: dolly |
| Surface finish | Glossy
Glossy and matt
Glossy |
| Device mounting | Flush (lắp âm tường) |
| IP degree of protection | IP20 |
| Standards | IEC 60884-2-3 |
| Height | 70 mm |
| Width | 120 mm |
| Depth | 30.3 mm |
| Embedding depth | 19.3 mm |
| Net weight | 0.118 kg |
