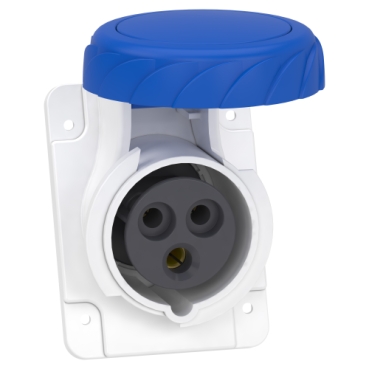

Specifications | PKF16F723 |
| Range of product | Mureva Socket |
| Country of Origin (Estimated) | Italy |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Device short name | Mureva Socket |
| Plug, socket category | Low voltage |
| Poles description | 2P + E (3 Chân) |
| Network type | AC (Lưới điện xoay chiều) |
| Outlet standard | Industrial (Ổ cắm công nghiệp) |
| Mounting mode | Panel-mounted (Gắn ở mặt vỏ tủ) |
| Plug, socket, control station shape | Angled (Ổ Cắm âm nghiêng) |
| [In] rated current | 16A |
| [Ue] rated operational voltage | 200...250 V (Dùng cho điện áp 1 pha) |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6h (Chân nối đất ở vị trí 6h theo đồng hồ) |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| IP degree of protection | IP 67 (Kín Nước) |
| Standards | IEC 60309-2
IEC 60309-1 |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Base dimension | 65 x 85 mm |
| Dimensions (WxHxD) | 73 x 85 x 103 mm |
| Net weight | 0.147 kg |
