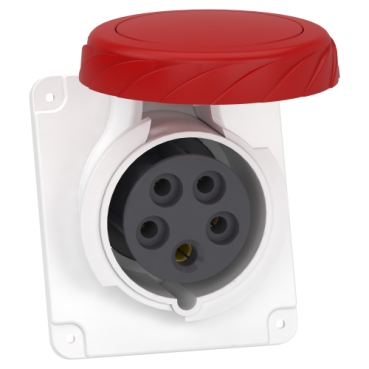

Specifications | PKF16F735 |
Range of product | Mureva Socket |
Country of Origin (Estimated) | Italy |
Warranty | 12 months |
CO/CQ | Yes (if) |
Device short name | Mureva Socket |
Plug, socket category | Low voltage |
Poles description | 3P + N + E (5 Chân) |
Network type | AC (Lưới điện xoay chiều) |
Outlet standard | Industrial (Ổ cắm công nghiệp) |
Mounting mode | Panel-mounted (Gắn ở mặt vỏ tủ) |
Plug, socket, control station shape | Angled (Ổ Cắm âm nghiêng) |
[In] rated current | 16A |
[Ue] rated operational voltage | 380...415 V (Dùng cho điện áp 3 pha) |
Network frequency | 50/60 Hz |
Ground lug clockwise position | 6h (Chân nối đất ở vị trí 6h theo đồng hồ) |
Plug, socket material | Housing: self-extinguishing engineering polymer |
Connections - terminals | Captive screws |
Cable cross section | 1…4 mm² |
IP degree of protection | IP 67 (Kín Nước) |
Standards | IEC 60309-2 IEC 60309-1 |
Colour | Grey (RAL 7035) |
Voltage colour | Red |
Base dimension | 90 x 100 mm |
Dimensions (WxHxD) | 90 x 100 x 106 mm |
Net weight | 0.2 kg |
