Specifications | PKF32F435 |
| Range of product | Mureva Socket |
| Country of Origin (Estimated) | Italy |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

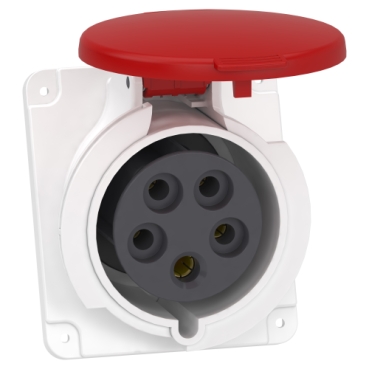

| Device short name | Panel-mounted Socket (Ổ Cắm Gắn Âm) |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E (5 Chân) |
| Network type | AC (Lưới điện xoay chiều) |
| Outlet standard | Industrial (Dùng trong điện Công Nghiệp) |
| Mounting mode | Panel-mounted (Gắn âm) |
| Plug, socket, control station shape | Angled ( Âm Nghiêng) |
| [In] rated current | 32A |
| [Ue] rated operational voltage | 380...415 V (Dùng cho điện áp 3 pha) |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6h (Chân nối đất ở vị trí 6h theo đồng hồ) |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Thread type | M25 |
| IP degree of protection | IP44 (Không Kín Nước) |
| Standards | IEC 60309-2
IEC 60309-1 |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Base dimension | 90 x 100 mm |
| Dimensions (WxHxD) | 90 x 100 x 117 mm |
| Net weight | 0.269 kg |
