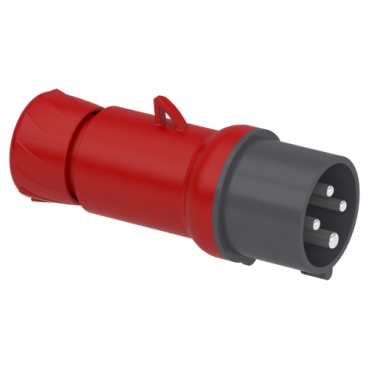

Specifications | PKE16M434 |
Range of product | Wander Plug |
Country of Origin (Estimated) | Italy |
Warranty | 12 months |
CO/CQ | Yes (if) |
Device short name | Mureva Plug |
Plug, socket category | Low voltage |
Poles description | 3P + E (4 Chân) |
Network type | AC (Lưới điện xoay chiều) |
Outlet standard | Industrial (Phích cắm công nghiệp) |
Plug, socket, control station shape | Straight (Phích cắm thẳng) |
[In] rated current | 16A |
[Ue] rated operational voltage | 380...415 V (Dùng cho điện áp 3 pha) |
Network frequency | 50/60 Hz |
Ground lug clockwise position | 6h (Chân nối đất ở vị trí 6h theo đồng hồ) |
Plug, socket material | Housing: self-extinguishing engineering polymer |
Connections - terminals | Captive screws |
Cable cross section | 1…4 mm² |
Cable outer diameter | 8…15 mm |
Thread type | PG 16 |
Cable entry | Fair lead Cable gland |
IP degree of protection | IP 44 (Không Kín Nước) |
Standards | IEC 60309-1 IEC 60309-2 |
Colour | Grey (RAL 7035) |
Voltage colour | Blue |
Dimensions (WxHxD) | 59 x 129 x 59mm |
Net weight | 0.15 kg |
