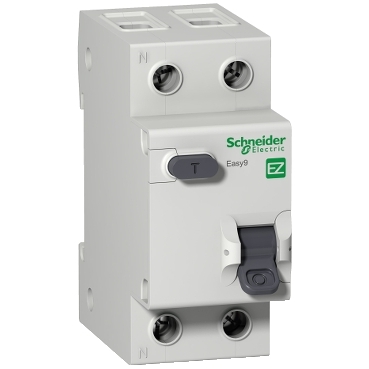

Easy9 RCD with overCurrent protection - 1P + N - 32 A - C Curve - 4500 A - 30 mA.
Specifications | EZ9D34632 |
| Range Of Product | Easy9 |
| Country of Origin (Estimated) | China (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product Or Component Type | Residual current breaker with overcurrent protection (RCBO) |
| Device Short Name | Easy9 RCBO |
| Device Application | Distribution |
| Number of Poles | 1P + N |
| [In] rated current | 32 A |
| Neutral Position | Left |
| Network Type | AC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | C |
| Earth-Leakage Sensitivity | 30mA |
| Earth-Leakage Protection Time Delay | Instantaneous |
| Earth-Leakage Protection Class | Type AC |
| Breaking Capacity | 4500 A Icn at 230V AC 50 Hz conforming to IEC 61009-1 |
| Magnetic Tripping Limit | 5...10 x In |
| [Ue] Rated Operational Voltage | 230 V AC 50 Hz |
| [Ui] Rated Insulation Voltage | 500 V |
| Control Type | Toggle |
| Mounting Support | DIN rail |
| Mechanical Durability | 8000 cycles |
| Connections - Terminals | Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible |
| Tightening Torque | 2 N.m top or bottom |
| Standards | IEC 61009-1 |
| Earth-Leakage Protection | Integrated |
Dimensions (mm)
(H x W x D) | 81 x 36 x 66.5 mm |
