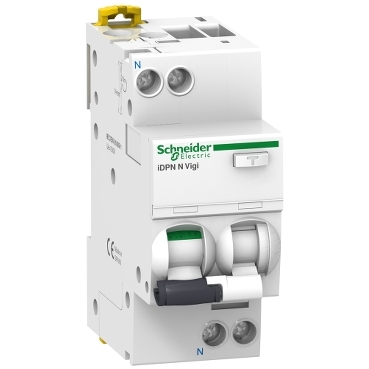

Acti 9 iDPN N Vigi - RCBO - 1P+N - 10A - C Curve - 6000A - 30mA - type AC.
Specifications | A9D31610 |
| Range Of Product | Acti9 |
| Country of Origin (Estimated) | Spain (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product Name | Acti9 iDPN Vigi |
| Product Or Component Type | Residual current breaker with overcurrent protection (RCBO) |
| Device Short Name | RCBO iDPN N Vigi |
| Device Application | Distribution |
| Number of Poles | 1P + N |
| Number Of Protected Poles | 1 |
| [In] rated current | 10 A |
| Neutral Position | Left |
| Network Type | AC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | C |
| Earth-Leakage Sensitivity | 30 mA |
| Earth-Leakage Protection Time Delay | Instantaneous |
| Earth-Leakage Protection Class | Type AC |
| Breaking Capacity | 6000 A Icn at 230...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 |
| [Ue] Rated Operational Voltage | 230...240 V AC 50 Hz |
| Magnetic Tripping Limit | 5...10 x In |
| Residual Current Tripping Technology | Voltage independent |
| [Ui] Rated Insulation Voltage | 400 V AC 50 Hz |
| Control Type | Toggle |
| Local Signalling | ON, OFF, fault trip |
| Mounting Support | DIN rail |
| Mechanical Durability | 20000 cycles |
| Connections - Terminals | Single terminal top or bottom 1…16 mm² rigid Single terminal top or bottom 1…10 mm² flexible Single terminal top or bottom 1…10 mm² flexible with ferrule |
| Tightening Torque | 2 N.m top or bottom |
| Earth-Leakage Protection | Integrated |
| Standards | EN/IEC 61009-2-1 |
Dimensions (mm)
(H x W x D) | 85 x 36 x 73 mm |
| Net Weight | 125 g |
