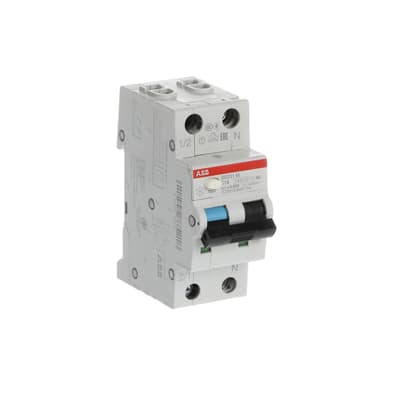

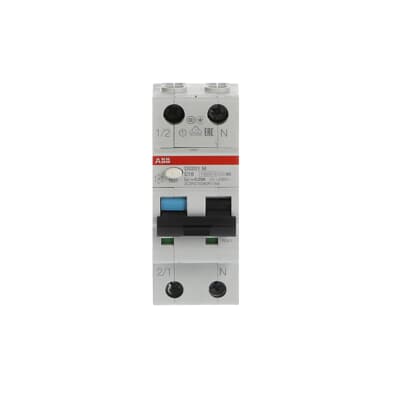

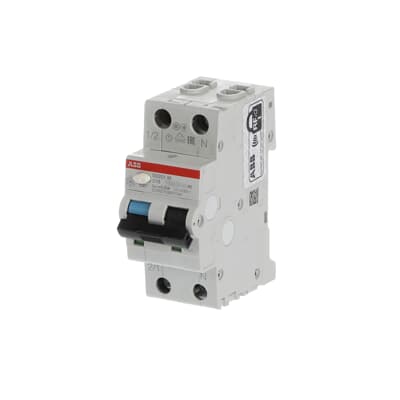

DS201 M C16 AC30 Residual Current Circuit Breaker with Overcurrent Protection.
Specifications | 2CSR275040R1164 |
| Extended Product Type | DS201 M C16 AC30 |
| Range | Residual Current Circuit Breaker with Overcurrent Protection DS201 |
| Country of Origin (Estimated) | Italy (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | DS201 RCBO |
| Device application | Distribution |
| Number of Poles | 2P |
| [In] rated current | 16 A |
| Tripping Characteristic | C |
| Type of Residual Current | AC |
| Rated Operational Voltage | acc. to IEC 60898-1 240 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Test Voltage (Ut) | 170 ... 264 V |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 15 kA |
| Contact Position Indication | Red ON / Green OFF |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
Mounting Type | DIN-Rail |
Fault Indication | Blue flag on toggle |
