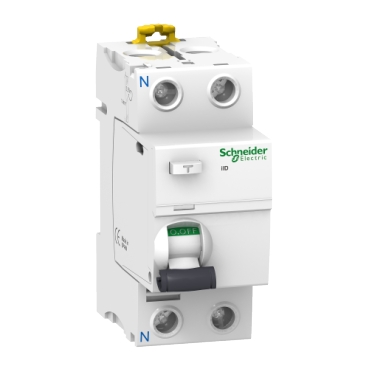

Acti 9 iID - RCCB - 2P - 25A - 300mA - type AC.
Specifications | A9R74225 |
| Range Of Product | Acti9 |
| Country of Origin (Estimated) | Spain (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product Name | Acti9 iID |
| Product Or Component Type | Residual current circuit breaker (RCCB) |
| Device Short Name | RCCB iID |
| Device Application | Distribution |
| Number of Poles | 2P |
| [In] rated current | 25 A |
| Neutral Position | Left |
| Network Type | AC |
| Earth-Leakage Sensitivity | 300 mA |
| Earth-Leakage Protection Time Delay | Instantaneous |
| Earth-Leakage Protection Class | Type AC |
| [Ue] Rated Operational Voltage | 220...240 V AC 50/60 Hz |
| Residual Current Tripping Technology | Voltage independent |
| [Ui] Rated Insulation Voltage | 500 V AC 50/60 Hz |
| Control Type | Toggle |
| Mounting Support | DIN rail |
| Mechanical Durability | 20000 cycles |
| Connections - Terminals | Single terminal top or bottom 1…35 mm² rigid Single terminal top or bottom 1…25 mm² flexible Single terminal top or bottom 1…25 mm² flexible with ferrule |
| Tightening Torque | 3.5 N.m top or bottom |
| Standards | EN/IEC 61008-1 |
Dimensions (mm)
(H x W x D) | 91 x 36 x 73.5 mm |
| Net Weight | 0.21 kg |
