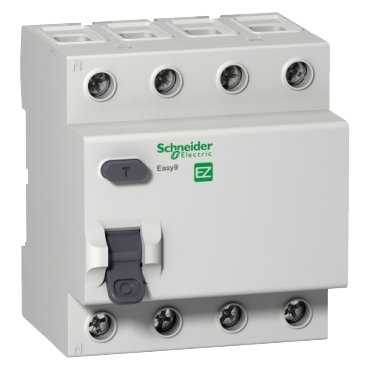

Easy9 Residual Current CirCuit Breaker - 4P - 40A - 300 mA - AC type - 400 V.
Specifications | EZ9R64440 |
| Range Of Product | Easy9 |
| Country of Origin (Estimated) | India (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product Or Component Type | Residual current circuit breaker (RCCB) |
| Device Short Name | Easy9 RCCB |
| Number of Poles | 4P |
| [In] rated current | 40 A |
| Neutral Position | Left |
| Network Type | AC |
| Tripping Characteristic | C |
| Earth-Leakage Sensitivity | 300mA |
| Earth-Leakage Protection Time Delay | Instantaneous |
| Earth-Leakage Protection Class | Type AC |
| Rated Breaking And Making Capacity | 500 A |
| [Ue] Rated Operational Voltage | 400 V AC 50 Hz |
| [Ui] Rated Insulation Voltage | 440 V AC |
| Control Type | Toggle |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Mechanical Durability | 5000 cycles |
| Connections - Terminals | Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible |
| Tightening Torque | 3.5 N.m top or bottom |
| Standards | IEC 61008-1 |
Dimensions (mm)
(H x W x D) | 82 x 72 x 72 mm |
