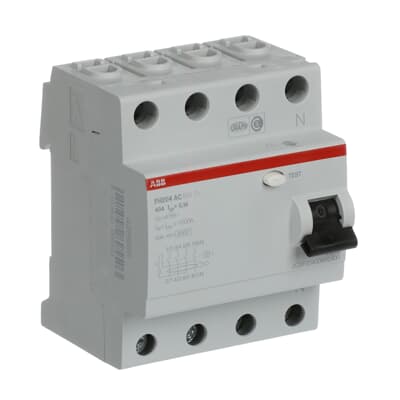

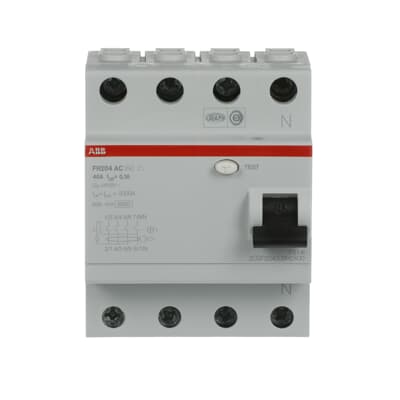

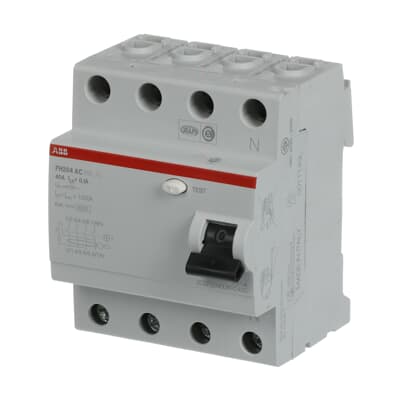

FH204 AC-40/0.1 Residual Current Circuit Breaker 4P 40A Type AC 100 mA.
Specifications | 2CSF204006R2400 |
| Extended Product Type | FH204 AC-40/0.1 |
| Range | Residual Current Circuit Breaker FH200 |
| Country of Origin (Estimated) | Italy (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | The RCCBs FH200 |
| Device application | Distribution |
| Number of Poles | 4P |
| Position of Neutral Terminals | Right |
| [In] rated current | 40 A |
| Type of Residual Current | Type AC |
| Input Voltage Type | AC |
| Rated Residual Current | 100mA |
| Standards | IEC 61008 |
| Rated Operational Voltage | 230 / 400 V AC |
| Rated Insulation Voltage (Ui) | 500V |
| Leakage Current Type | AC |
| Rated Conditional Short-Circuit Current (Inc) | 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
| Maximum Surge Current | 0.25 kA |
| Operating Characteristic | Instantaneous |
| Mounting Type | DIN-Rail |
| Rated Cross-Section | 4 - Multi-Wired 10...25 mm²
1 - Solid-Core 25...25 mm² |
Dimensions (mm)
(H x W x D) | 69 x 70 x85 mm |
| Net Weight | 380 g |
